Design Inspiration

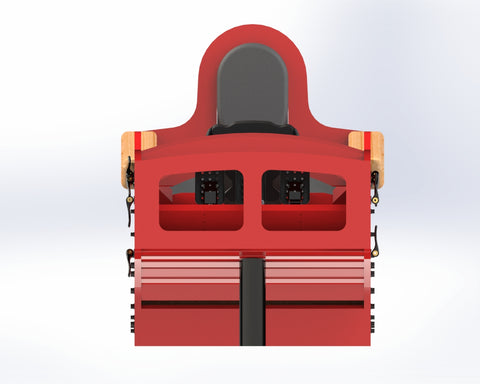

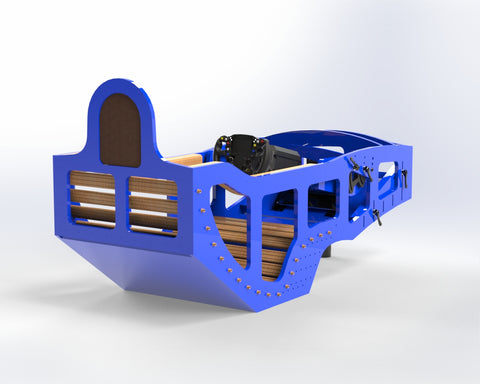

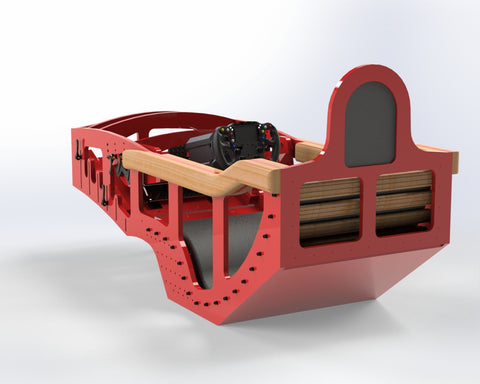

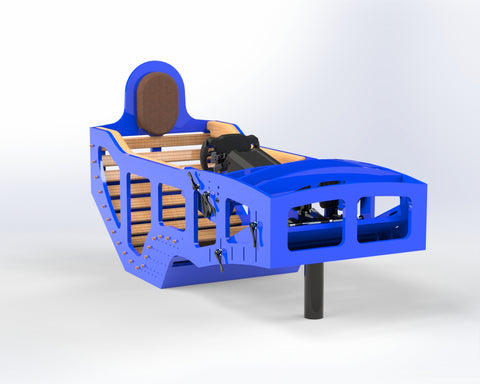

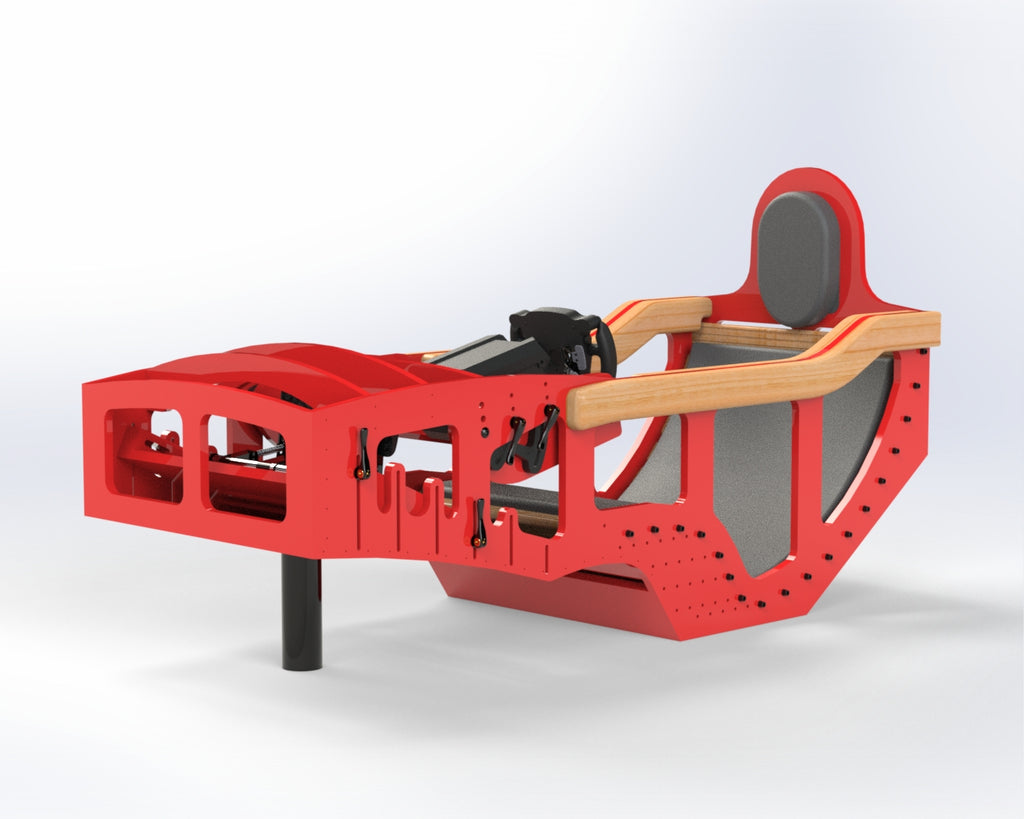

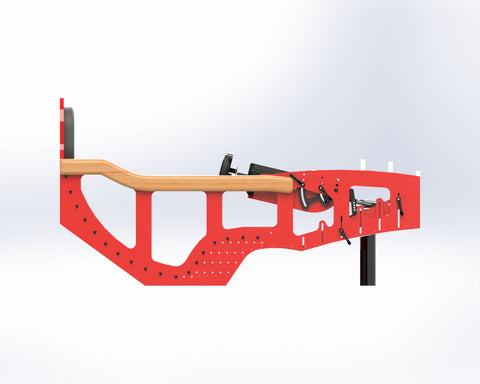

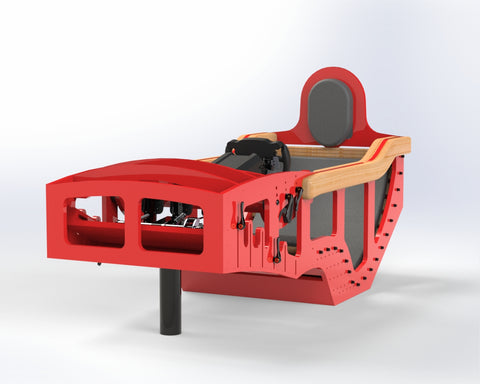

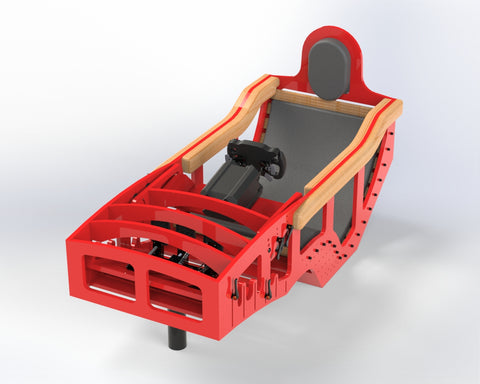

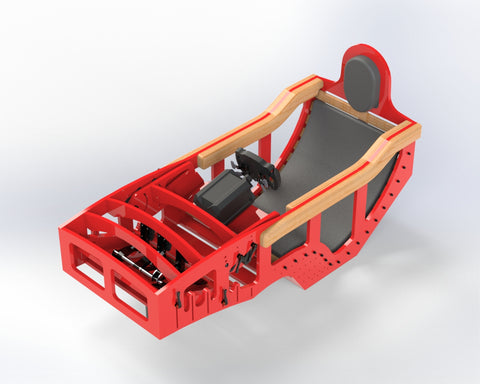

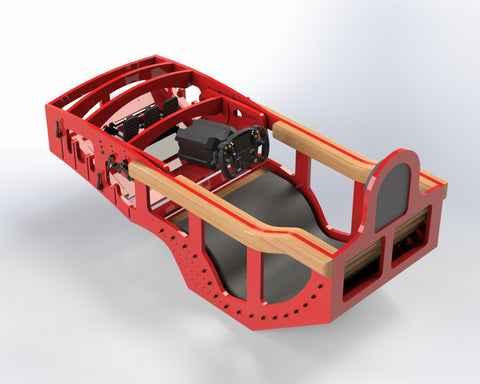

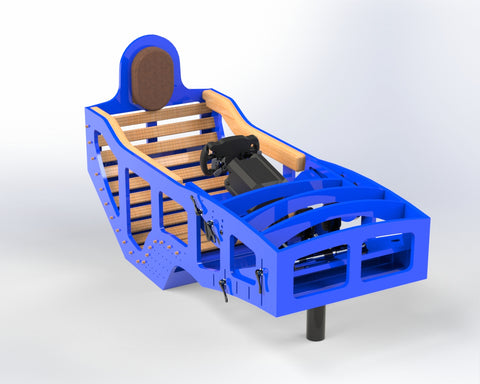

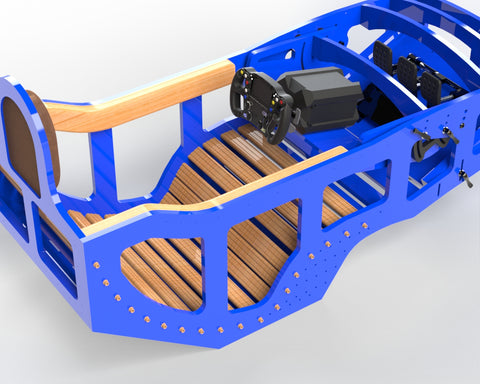

Create a F1 sim rig, with integrated seat and ergonomics which is easy to build using basic wood working power tools

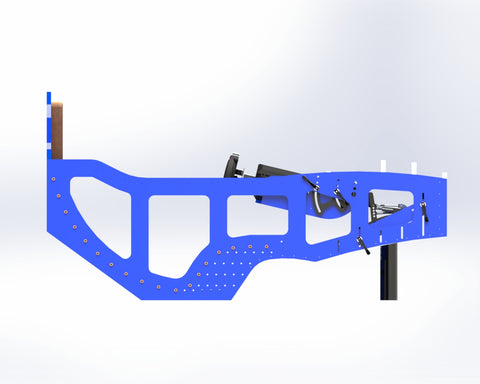

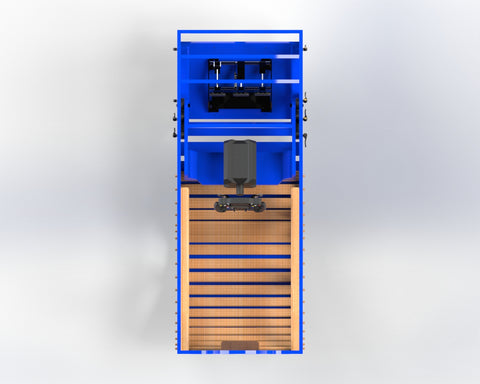

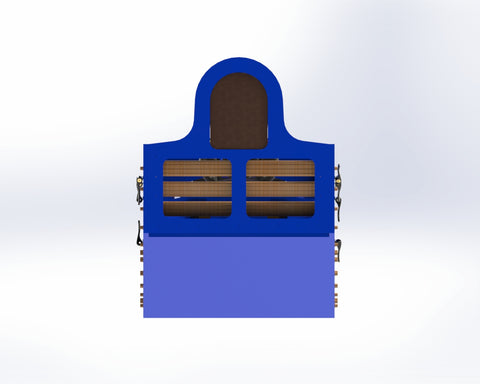

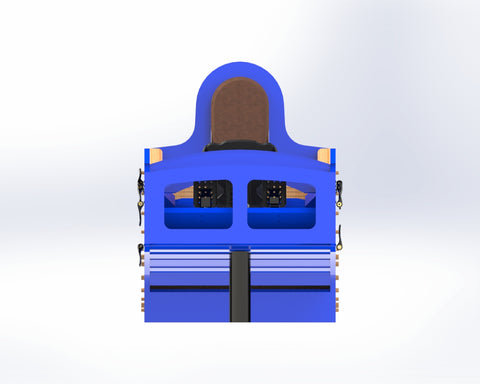

Design created from scale F1 Sauber drawing
- Integrated F1 seat
- Adjustable F1 seat shape

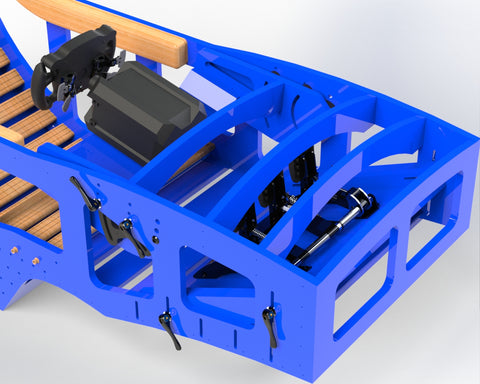

- Adjustable pedal height, angle & depth

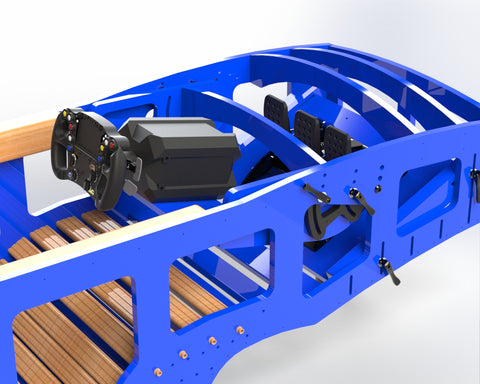

- Adjustable wheel base angle, height & depth

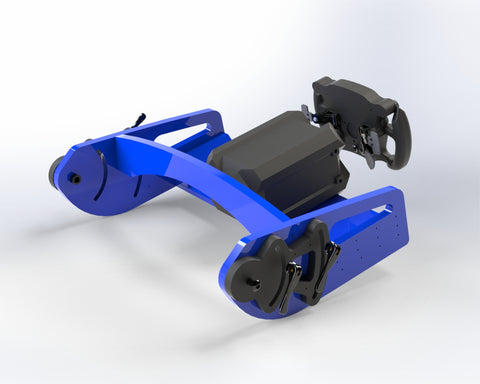

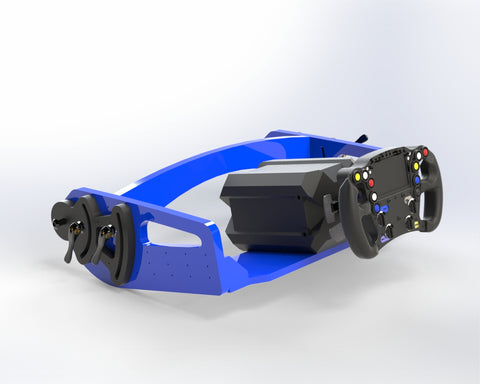

- Wheel assembly swings up for easy access
Low building matrial costs
- Created from 3/4" (19mm) MDF or plywood
- Seat support rails from t-slot extrusion or hardwood "2"*1"
- CNC files availble or print & cut with jig saw
- A few complex 3D parts can be 3D printed (Roll bar & spacers)
STEP 1 - Ordering
Choose the Plans, Digital or Physical.
OSR will send you the digital plans normally within 24 hours. The digital plans are released using google drive, this process is 100% manual, so a little patience is sometimes required :-). It helps the process if you have a gmail account, but this is not essential.
If you choose paper version these have a 10 day lead time.
d time.
Shopping list items include:
- Wood
- 2 sheets (4'* 8') of 3/4" (19mm) MDF or plywood
- Screw/Bolts
STEP 2 - Assembling & Cutting
Once all the OSR Plans, Custom Hardware and Shopping List parts have arrived you are ready for assembly. Use the OSR 1:1 Plans.
Tools you require
- Jig saw
- Circular saw
- Drill
Optional tools
- Router
- Table saw
The assembly process is very straight forward, but you require basic wood working skills. Sorry, we do not provide a step by step assembly guide.
STEP 3 - Mounting
Mount chosen Monitors, Seat, and Hardware (not provided).
Prices shown in CDN Dollars
Legal Stuff...
The plans are copyrighted and licensed for personal use only. The completed or partially completed sim rigs chassis is not permitted to be sold, resold, distributed, mass produced or used in any commercial fashion. The plans may not be reproduced or distributed in any manner.
