Design

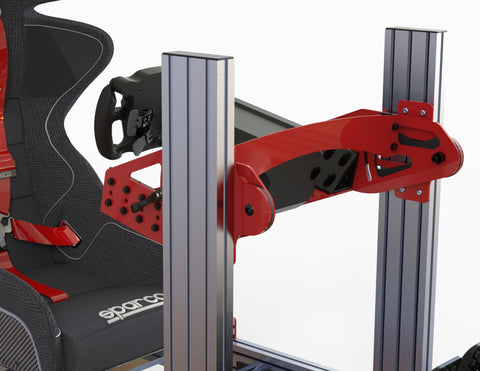

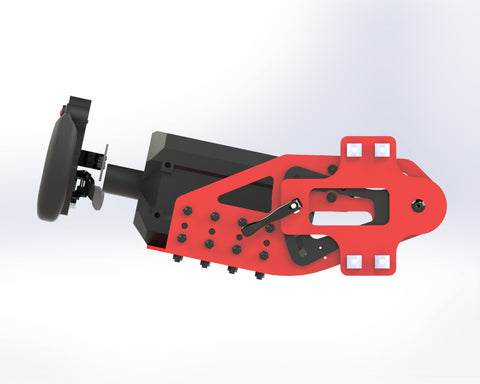

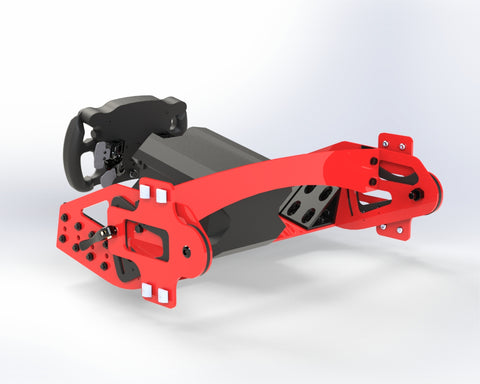

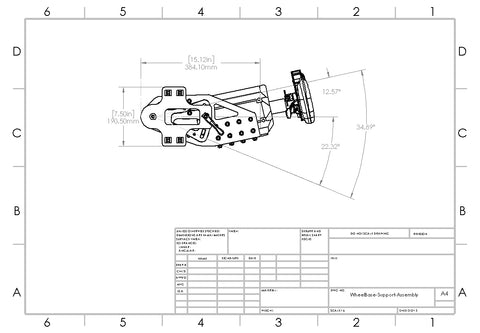

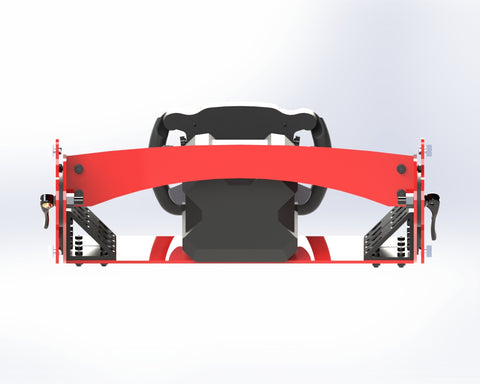

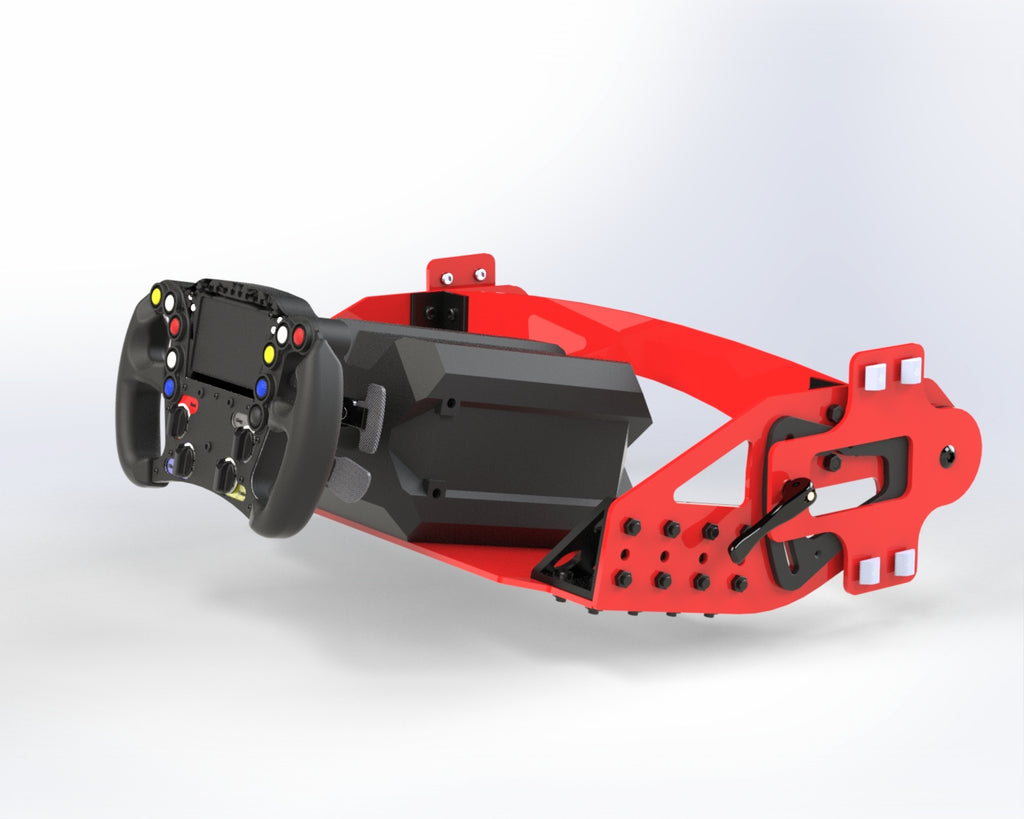

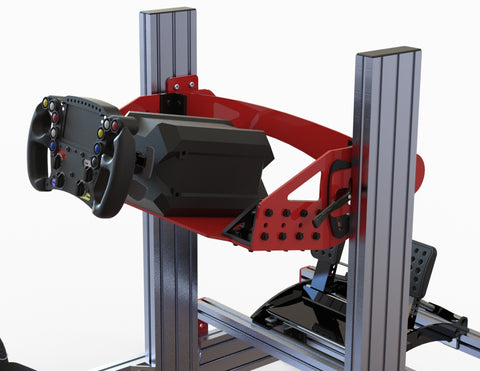

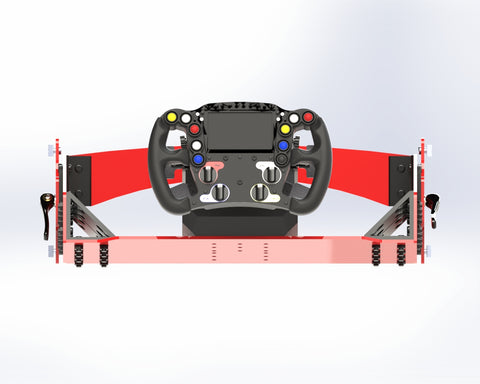

When designing or building your own sim rig mounting the wheel so it offer angle adjust is often a challenge. I designed a wheel mount that offers a wide range of angle adjust which is easy to build using 6 custom plates cut from 3/16" or 5mm steel or aluminium and a few standard t-slot parts
We supply
- Plans in PDF file format
- CNC files oin DXF & dwg file format
- A set of extrusion drawings to aid in cutting
- T-slot/tnutz.co parts list
- After the purchase I will send a email asking what width you need, then I will create the 2 custom files. The default width between posts is 550mm
About
15 & 40 series aluminum creates a very strong and robust sim rig.
Downloading
OSR will send you the digital plans normally within 24 hours. The digital plans are released using google drive, this process is 100% manual, so a little patience is sometimes required :-). It helps the process if you have a gmail account, but this is not essential.
Save money ordering aluminum extrusion
OSR recommends tnutz.com affiliate program they offer an excellent service, they ship world wide and you can use this link to to save over 35% compared to other suppliers.
STEP 2 - Assembling & Cutting
Once all the OSR Plans, Custom Hardware and Shopping List parts have arrived you are ready for assembly. Follow the OSR Plans.
Legal Stuff...
The plans are copyrighted and licensed for personal use only. The completed or partially completed sim rigs chassis is not permitted to be sold, resold, distributed, mass produced or used in any commercial fashion. The plans may not be reproduced or distributed in any manner.
