Plans/CNC - Minimalist Custom - 15 & 40 Series Extrusion

  • Sale
  • $70

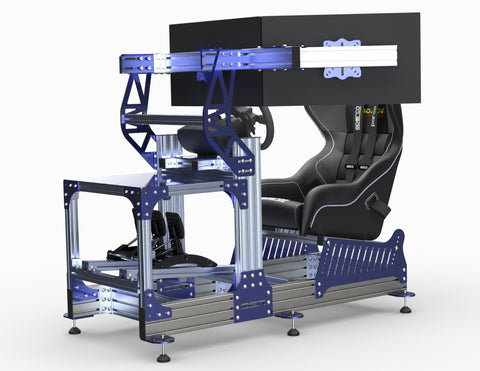

Custom CNC plates required to build this sim rig

  • This design uses a number of custom plates, so you need the CNC files if you want to cut the plates locally.
  • We provide CNC files in DWG & DXF format
  • The CNC files, allow you to use your local laser or water jet cutting service, so you can have the files cut locally saving you shipping costs. Note you are only licensed to cut one set of plates for personal use.

    Water jet cutting, produces a nice clean edge with a finish like medium grade sand paper, laser cutting can be more cost effective because it faster and produces a near mirror edge finish on steel or aluminium.

    I suggest cutting the plates from 3mm (1/8") aluminium or low carbon steel, the monitor support arms should be cut from 6mm or 9mm.

STEP 1 - Ordering

OSR will send you the digital plans normally within 24 hours. The digital plans are released using google drive, this process is 100% manual, so a little patience is sometimes required :-). It helps the process if you have a gmail account, but this is not essential.

Choose the Plans option and decide if you want to purchase the standard hardware from OSR of another aluminum supplier.

OSR will send you the digital version of the plans right away and an shopping list to complete the project. Shopping list items include:

  • 15 OR 40 Series Aluminum Extrusion
  • Bolts, Nuts, T-Nuts
  • Universal Structural Pivot Nub
  • 4 Hole and 2 Hole Inside Corner Brackets

    We also offer ready to assembly kits including 8020 cut to length, so all you need to is the assembly.

      Save money ordering aluminum extrusion

      OSR recommends affiliate program they offer an excellent service, they ship world wide and you can use this link to to save over 35% compared to other suppliers.

        STEP 2 - Assembling

        Once all the OSR Plans, Custom Hardware and Shopping List parts have arrived you are ready for assembly. Follow the OSR Plans.

        Depending on how you ordered the Aluminum Extrusion there might be some additional cutting to do if you ordered full lengths.

        The rest of the assembly process is very straight forward, just follow the plans!

        STEP 3 - Mounting

        Mount chosen Monitors, Seat, and Hardware (not provided). Note can we supply wheel mounting plates if for all sim wheels upon request.

        Legal Stuff...

        The plans are copyrighted and licensed for personal use only. The completed or partially completed sim rigs chassis is not permitted to be sold, resold, distributed, mass produced or used in any commercial fashion. The plans may not be reproduced or distributed in any manner.
